TS PHOTOLINE 115/800mm Triplet APO (no field flattener)

TS Optics PHOTOLINE Triplet APO 115/800mm - OTA. Very high quality Triplet APO - color free image for demanding users .

This PHOTOLINE Triplet APO offers such a high image quality as has previously been the domain of much more expensive APOs. False colour has been reduced so much that it no longer plays any practical role. Correction is much better than in standard doublet ED refractors.

The objective is air-spaced, not cemented. This avoids thermic problems often occuring in cemented triplet lenses. We tested this telescope with the optional TS field flattener and compared it with a similar refractor with 110mm aperture. This direct comparison showed much better photographical results on the 115mm APO. The telescope is recommended without reservations up to about 45mm sensor diagonal.

The TS PHOTOLINE Apos offers a high grade of colour correction and a photographic field for full-format DSLR cameras. Its precise 3" Crayford focuser offers a non-vignetted field and more stability compared with a standard 2" focuser. The TS Photoline APOs are the new generation of refractors especially designed for deep sky imaging.

Advantages of the 115mm Apo:

• retractable dewcap for compact transport dimensions - only 68cm tube length with dewcap retracted
• sturdy 3" Crayford focuser with 1:11 microfocuser
• robust mechanics
• CNC machined tube rings

With the optional TS PHOTOLINE 3" Flattener this APO offers perfect image sharpness to the very edge of the photographical field.

The TS field flattener, aside from offering a superb image quality, has another great advantage: The back focus is much larger than the 55mm offered by most other flatteners. This allows you to place additional accessories between the flattener and the camera, for example Off Axis Guiders, filter wheels...

With that great advantage the 130mm APO becomes a top instrument for demanding astro imaging.

Contact us if you want as to help you in selecting the optimum configuration for you.

Specifications:

• hand-corrected 115 mm f/7 APO Refractor
• 3-lens design, air-spaced, fully multicoated
• Objective with 115mm aperture and 800mm focal length
• 3“ Crayford Focuser with 2" and 1.25" adaptation
• 2-speed microfocuser
• Weight of the tube: 8 kgs
• particularly well suited for astro imaging
• Adjustable lenses
• Blackened lens edges to eliminate internal reflections
• retractable dewcap with locking screw
• CNC machined tube rings

Scope of Delivery:

• APO 115/800mm with tube rings and Vixen-style dovetail plate
• 3" Crayford focuser with 2" and 1.25" adaptation. 1:11 microfocuser
• Aluminium carrying case

	APO Objective: Multi-coated triplet APO objective with 115mm aperture and 800mm focal length. The image is free from distracting false colour. Under appropriate seeing conditions magnifications up to 300x are possible.

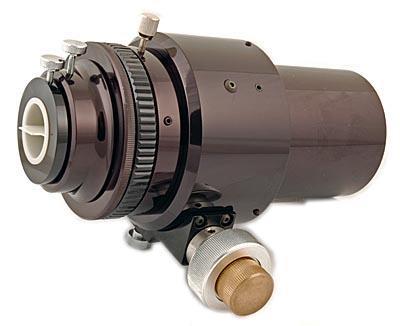

	3" Crayford Focuser: For astro imaging a 2" focuser can cause vignetting towards the edges of the photographical field. To avoid this problem we recommend the use of 3" focusers for photography.  On this APO we use a 3" Crayford focuser of high quality. It is strong enough to carry even heavy photographical loads, and offers a very smooth focusing motion. A 2" adaptation and a separate 2"-1.25" adaptor are included as standard. When the 2" adaptation is removed it is possible to directly install the 2.5" TS Optics field flattener.

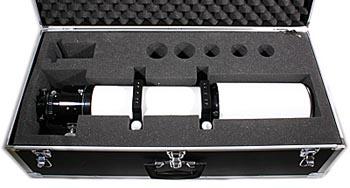

;	Rigid Aluminium Transport Case: for safe transportation and storage. Included in the scope of delivery.
